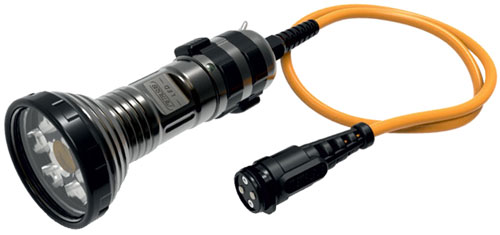

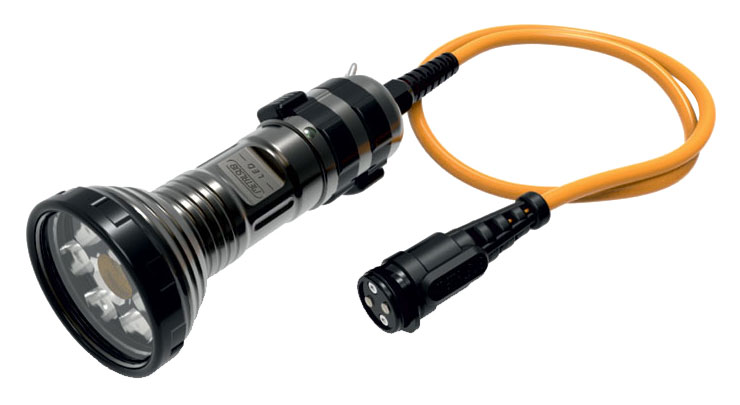

The Newest and Most Powerful Metalsub Cable Lamp with a Capacity of 12200 Lumens with Spot and Flood Options

The newest FS 12 LED12000 version of the KL1242 cable lamp collection is the most powerful Metalsub dive light available, with 12000Lumen output in total. This is the first dive light with a combined Spot and Flood function. Two separate switches control both functions and can also be used simultaneously for maximum light output. The light output is delivered in an elegant spot with a beam angle of 10 degrees. The Metalsub reflectors are specially designed to ensure that there are no visible rings or dark spots in the light beam. Due to the minimal dimensions, the low weight: only 150 grams underwater, and the enormous light output, this lamp is very workable for experienced, serious divers with high expectations.

This cable lamp has the familiar characteristics of all Metalsub lamps: reliable, indestructible and made of the best kind of aluminum, equipped with a hard anodizing layer that meets the strictest American military requirements. The front glass is made of tempered glass.

  • Infinitely dimmable from 0 to 100%
  • 3 warning signals (SOS-Flash-Strobe)
  • 4 dim options and 2 warning signals (SOS - Flash)
  • Stainless steel ring for attachment to the equipment
  • Thermally electronic/mechanic heat protection >60 C
  • Deep discharge protection
  • Tested to 25 bar

  • Burn Time
    With the middle format Metalsub battery tank of 11 Ah, this lamp still burns for 2 hours without dimming, while with the largest 15 Ah battery tank it illuminates more than 3 hours at full power. This burning time can of course be extended considerably by dimming the lamp steplessly.

    Order this lamp with a 11 Ah or 15 Ah battery tank and MP2500 quick charger.

    Technical Specification

    Material :  Aluminium, hard-andized and impregnated with Teflon*
    Size :  72 x 170 mm length.
    Weight above water :  Approx. 600g.
    Weight under water :  Approx. 150g.
    LED SPOT: 6200 Lumen - CCT=5700K.
    LED FLOOD : 6000 Lumen - CCT=5000K.
    Variable light power :  0 - 100%.
    Maximum dive depth: 250 metres.
    Maximum pressure test : 25 bar.
    Cable length :  100cm.

    Thermally electronic/mechanic heat protection > 60c
    Deep discharge protection.

    Additional functions:
    3 warning signals (SOS-Flash-Strobe).
    Infinitely dimmable.
    Green / yellow / red LED display to indicate the remaining burning time.
    4 dim options and 2 warning signals (SOS - Flash).

    Capacity with only SPOT or FLOOD: appr. 140 min.**
    Capacity with both SPOT and FLOOD: appr. 70 min.**

    Capacity with only SPOT or FLOOD: appr. 190 min.**
    Capacity with both SPOT and FLOOD: appr. 90 min.**

    Metalsub KL1242 FS12 Manual

    * In accordance with American Military Standard MIL-A-8625-E type 3 class 2.
    Also the coating is impregnated with Teflon.

    ** Measured at 100% power and water temperature 20 degree Celsius.
