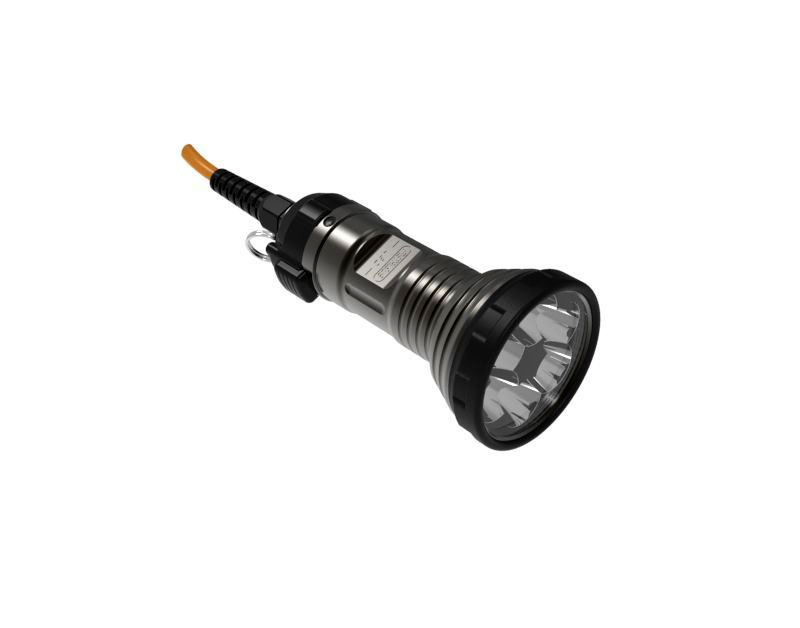

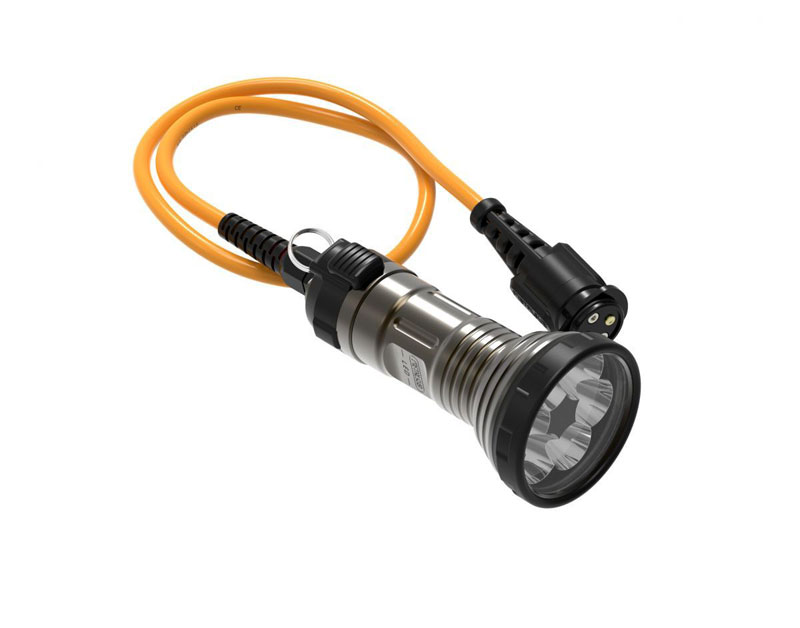

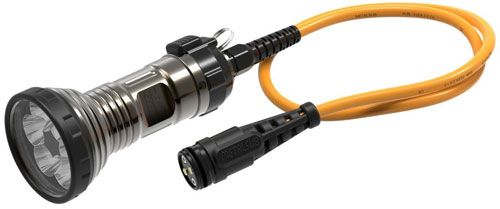

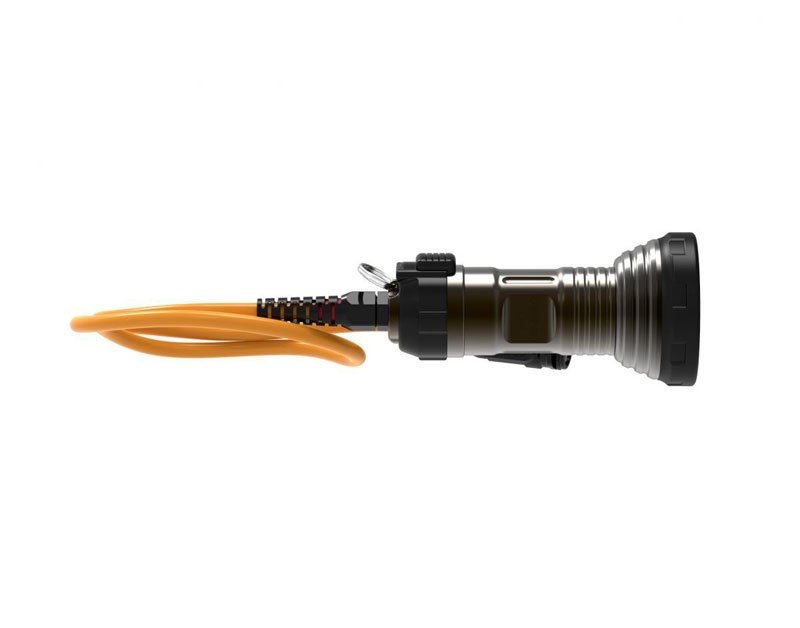

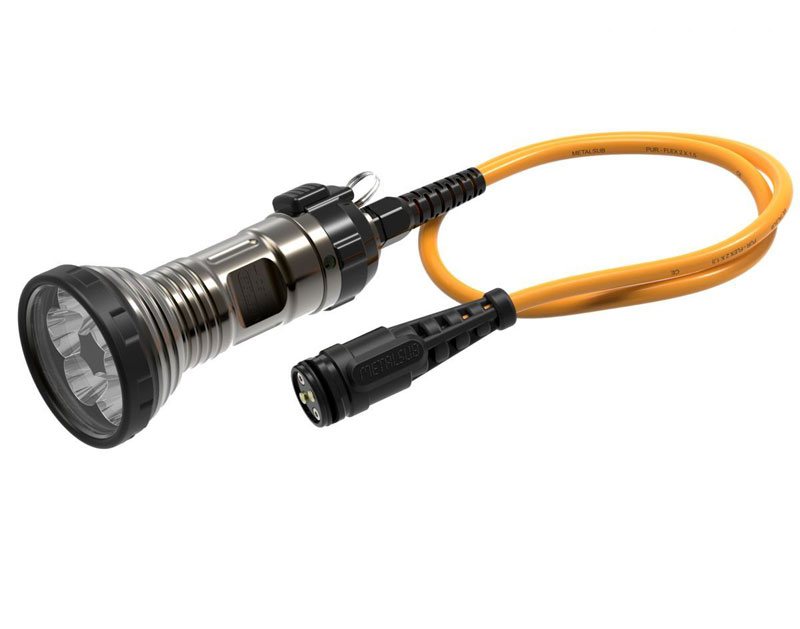

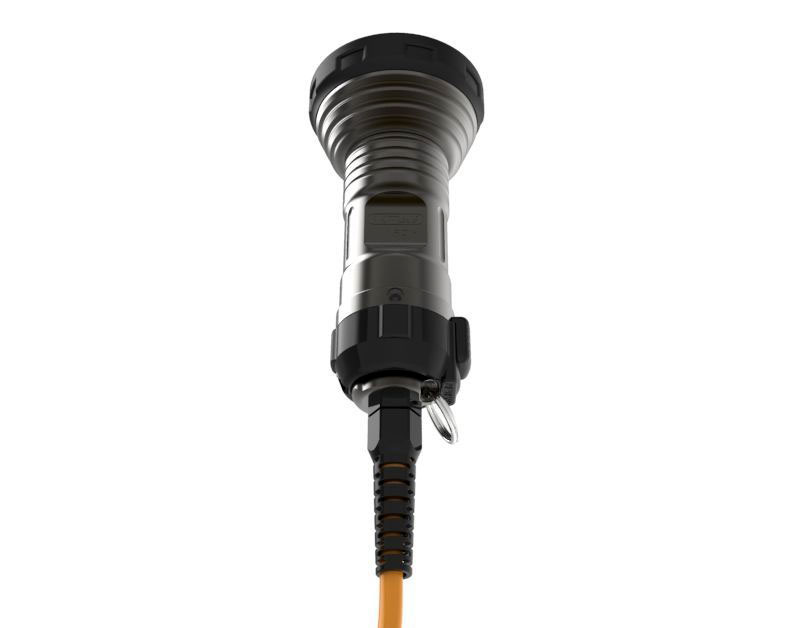

A Compact Cable Light With A Capacity of 6350 Lumens

The LED6350 version of the KL1242 collection has a large light output of 6350 lumens. The spectacular high light power and smart design makes it particularly suitable for serious divers with high expectations, who do not want to compromise on their diving experience. The small size and low weight (only 100 grams under water) makes the LED6350 even more workable. The power is delivered in a nice smooth spot with a beam angle of 10 degrees. The Metalsub reflectors are specially designed to ensure that there are no visible rings or dark spots in the light beam.

This lamp has the familiar characteristics of all Metalsub lamps: reliable, indestructible and made of the best kind of aluminium, provided with a hard anodising layer that meets the strictest American military requirements. The front glass is made of tempered glass.

  • Infinitely dimmable from 0 to 100%
  • 3 warning signals (SOS-Flash-Strobe)
  • 4 dim options and 2 warning signals (SOS - Flash)
  • Stainless steel ring for attachment to the equipment
  • Thermally electronic/mechanic heat protection >60 C
  • Deep discharge protection
  • Tested to 25 bar

  • Burn Time
    With the middle format Metalsub battery tank of 10 Ah, this lamp still burns for 2 hours without dimming, while with the largest 13 Ah battery tank it illuminates more than 3 hours at full power. This burning time can of course be extended considerably by dimming the lamp steplessly.

    Order this lamp with a 10 Ah or 13 Ah battery tank and MP2500 quick charger.

    Technical Specification

    Material :  Aluminium, hard-anodized and impregnated with Teflon*
    Size :  70 x 160 mm length.
    Weight above water :  Approx. 500g.
    Weight under water :  Approx. 100g.
    Power and Lumen: 60W - 6350 Lumen.
    Colour Temperature :  5700K
    Variable light power :  0 - 100%.
    Beam :  10 degree Spot.
    Reflector :  55mm diameter.
    Maximum dive depth: 250 metres.
    Maximum pressure test : 25 bar.
    Cable length :  100cm.

    Thermally electronic/mechanic heat protection > 60c
    Deep discharge protection.

    Additional functions:
    3 warning signals (SOS-Flash-Strobe).
    Infinitely dimmable.
    Green / yellow / red LED display to indicate the remaining burning time.
    4 dim options and 2 warning signals (SOS - Flash).

    6350 Capacity:  6350 Lumen LED Head

    PR1204/FX1204: appr. 40min**
    PR1210/FX1210: appr. 115min**
    PR1213: appr. 155min**

    * In accordance with American Military Standard MIL-A-8625-E type 3 class 2.
    Also the coating is impregnated with Teflon.

    ** Measured at 100% power and water temperature 20 degree Celsius.
