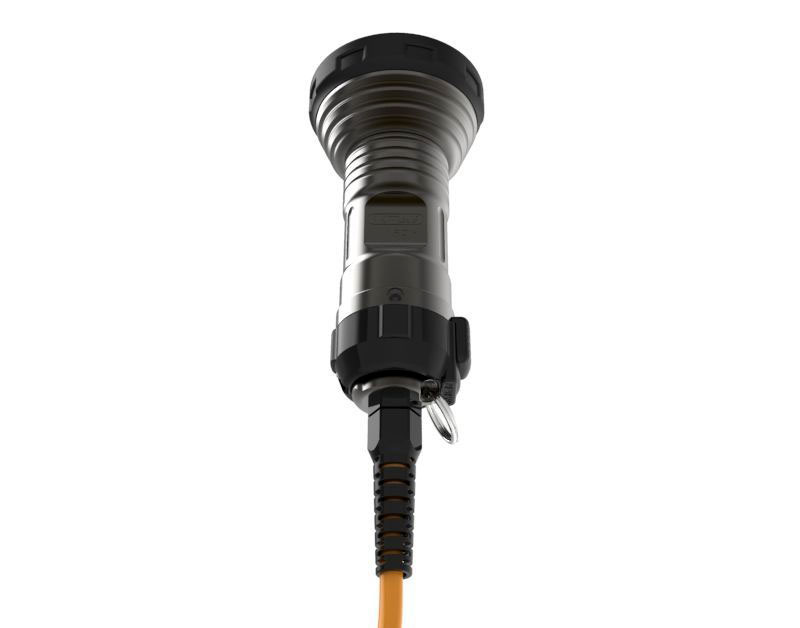

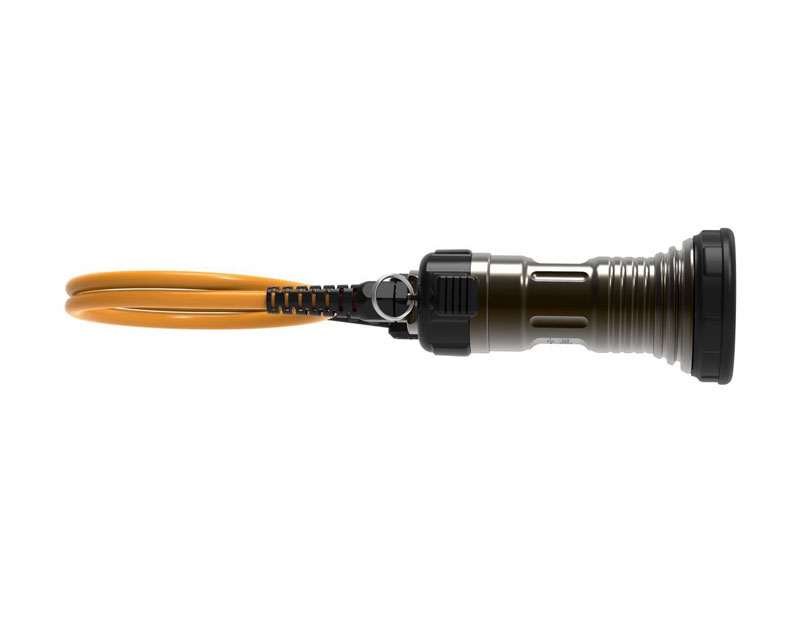

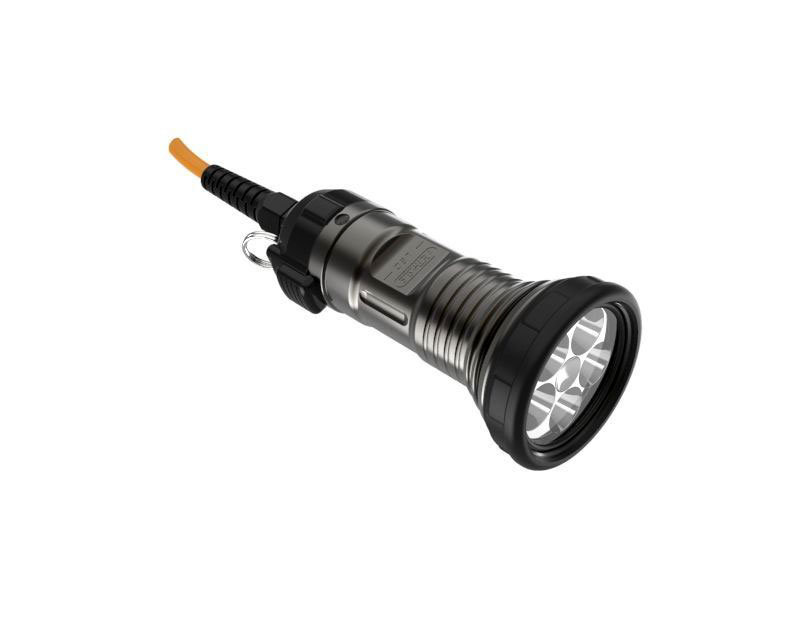

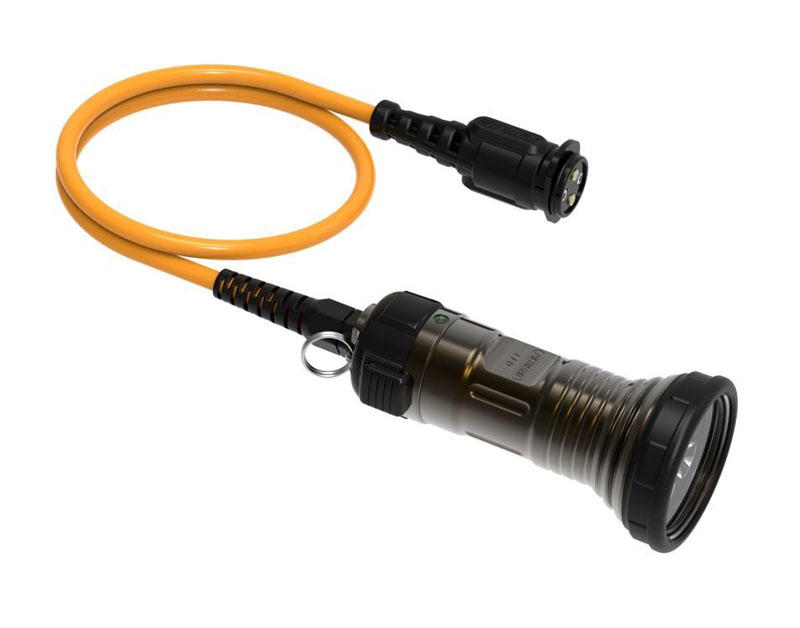

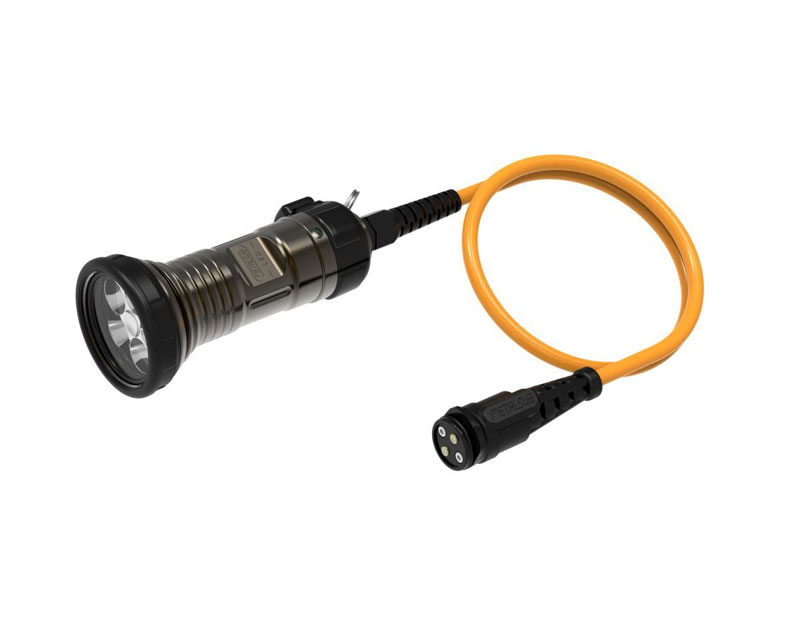

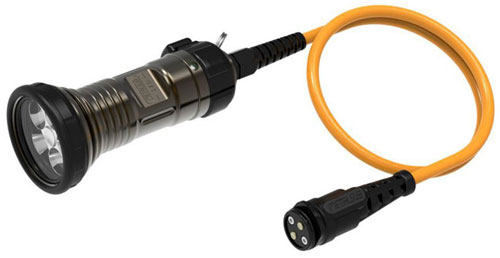

A Compact Cable Light With A Capacity of 2400 Lumens

The LED2400 version of the KL1242 collection has a large light output of 2400 lumens, which is delivered in a beautiful smooth spot with a beam angle of 10 degrees. The Metalsub reflectors are specially designed to ensure that there are no visible rings or dark spots in the light beam. Although the successors of this KL1242 lamp give more than twice the number of lumens, 2400 lumens appears to give a respectable amount of light for most divers. The small size and low weight (100 grams underwater) make the lamp easy to use.

This lamp has the familiar characteristics of all Metalsub lamps: reliable, indestructible and made of the best kind of aluminium, provided with a hard anodising layer that meets the strictest American military requirements. The front glass is made of tempered glass.

  • Infinitely dimmable from 0 to 100%
  • 3 warning signals (SOS-Flash-Strobe)
  • 4 dim options and 2 warning signals (SOS - Flash)
  • Stainless steel ring for attachment to the equipment
  • Thermally electronic/mechanic heat protection >60 C
  • Deep discharge protection
  • Tested to 25 bar

  • Burn Time
    Even with the smallest Metalsub battery tank of 4 Ah, this lamp still burns for 2 hours, while with the largest battery tank of 13Ah it gives more than 6.5 hours of light at full power! This burning time can be extended considerably by dimming the lamp steplessly.

    Order this lamp with a 4 Ah, 10 Ah or 13 Ah battery tank and MP2500 quick charger.

    Technical Specification

    Material :  Aluminium, hard-anodized and impregnated with Teflon*
    Size :  65 x 160 mm length.
    Weight above water :  Approx. 500g.
    Weight under water :  Approx. 100g.
    Power and Lumen: 24W - 2400 Lumen.
    Colour Temperature :  5700K
    Variable light power :  0 - 100%.
    Beam :  10 degree Spot.
    Reflector :  55mm diameter.
    Maximum dive depth: 250 metres.
    Maximum pressure test : 25 bar.
    Cable length :  100cm.

    Thermally electronic/mechanic heat protection > 60c
    Deep discharge protection.

    Additional functions:
    3 warning signals (SOS-Flash-Strobe).
    Infinitely dimmable.
    Green / yellow / red LED display to indicate the remaining burning time.
    4 dim options and 2 warning signals (SOS - Flash).

    2400 Capacity:  2400 Lumen LED Head

    PR1204/FX1204: appr. 120min**
    PR1210/FX1210: appr. 290min**
    PR1213: appr. 400min**

    * In accordance with American Military Standard MIL-A-8625-E type 3 class 2.
    Also the coating is impregnated with Teflon.

    ** Measured at 100% power and water temperature 20 degree Celsius.
