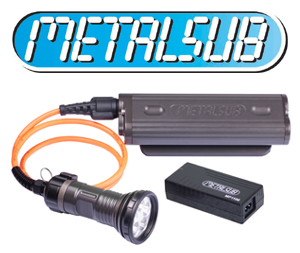

   ► METALSUB KL1242 CABLELIGHT KITS



THE POWER HAS BEEN INCREASED YET AGAIN

The extremely popular KL1242 Cablelight Package now comes in
two cablelight configurations; a 24W or a 50W option.

Each power configuration also comes with a batterytank that
has a choice of either; Fixed or a Pony Release.

In the latest upgrade to the kits, the Metalsub FX/PR1209 9Amp Batterytanks in both
the Fixed and Pony Release models have now been increased to 10Amps.

All kits now come with a carry case.




Option 1:
KL1242 24w 2400 Lumen LED Cablelight
FX1204 Fixed 12v 4Ah NiMH Batterytank
MP2500 Fast Charger
Carry Case


Option 2:
KL1242 24w 2400 Lumen LED Cablelight
PR1204 Pony Release 12v 4Ah NiMH Batterytank
MP2500 Fast Charger
Carry Case


Option 3:
KL1242 50w 5100 Lumen LED Cablelight
FX1210 Fixed 12v 10Ah NiMH Batterytank
MP2500 Fast Charger
Carry Case


Option 4:
KL1242 50w 5100 Lumen LED Cablelight
PR1210 Pony Release 12v 10Ah NiMH Batterytank
MP2500 Fast Charger
Carry Case


----------------------------------------

KL1242 Cablelight Specifications:

Material :  Aluminium *
Size :  Ø 68 x 160 mm length.
Weight above water :  Approx. 500g.
Weight under water :  Approx. 250g.
Luminous flux :  Approx. 0-3500 Lumen.
Variable light power :  30 - 100%.
Signals :  Flash - Strobe - S.O.S.
Reflector :  55mm diameter.
Cable length :  100cm (Extended cable optional).
Battery charge indicator : Yes.
Hyperbaric pressure test : 25 bar.
Goodman handle : Optional.
Deep Discharge Protection
LED Capacity Indicator


FX1204 / PR1204
Batterytank Specifications:


Material : Aluminium*
Size : 65 x 75 x 230 mm
Weight above water : 1.6 kg
Weight under water : 1.0 kg
Hyperbaric pressure test : 25 bar
Battery type : NiMH
Battery power : 12 Volt 3,8 Ah
Charging time :  MP2500 - 2 hrs


FX1210 / PR1210
Batterytank Specifications:


Material :  Aluminium*
Size :  65 x 75 x 340 mm
Weight above water :  2.5 kg
Weight under water :  1.4 kg
Hyperbaric pressure test :  25 bar
Battery type :  NiMH
Battery power :  12 Volt 10 Ah
Charging time :  MP2500 - 5 hrs


MP2500 Charger Specifications:

Input voltage :  110-240VAC 50-60Hz 0.8A
Charging current :  2,5Ah
Suitable for :  NiCad and NiMH cells
LED Indication
Fitted with :  Delta-V controller & a Safety timer

Includes UK Power Cord




2400 Capacity:  24 Watt LED - 2400 Lumen

PR1204/FX1204: appr. 120min**
PR1209/FX1209: appr. 270min**
PR1213: appr. 400min**



5100 Capacity:  50 Watt LED - 5100 Lumen

PR1204/FX1204: appr. 45min**
PR1210/FX1210: appr. 120min**
PR1213: appr. 180min**



* Anodized in accordance with American Military Standard MIL-A-8625-E type 3 class 2 and the coating is impregnated with Teflon.

** Measured by 100% power and water temperature of 20°Celsius.






LED Indication

  LED Colour
Green
Orange
Red
Flashing Red*

Battery Capacity
ca. 100%-50%
ca. 50%-20%
ca. 20%-10%
ca. 10%-0%





* the lightpower drops down to 50%



KL1242 Handle
(Optional)
