DiveAlertPLUS is a specially designed, small, light weight pneumatic signalling device that uses quick-connect/disconnect hose couplings to become an integrated part of your power inflator. Installation is easy and takes only a moment.

DiveAlertPLUS uses a small amount of air from your SCUBA tank to make a piercingly loud sound in air or water. People have been able to hear a DiveAlertPLUS one mile away from a diver in need above water. In conditions where visibility is limited, a DiveAlertPLUS can be a life saver.





MAINTENANCE After each use, DiveAlertPLUS should be rinsed with fresh water. This is especially important after use in chlorinated swimming pools and in other water having corrosive substances. Additionally, it is highly recommended that you blow the water out of DiveAlertPLUS before storing. This can be done by pressurizing and activating both the surface and subsurface signalling elements. We recommend that you cup your hand over the surface signalling element to muffle the loud noise.

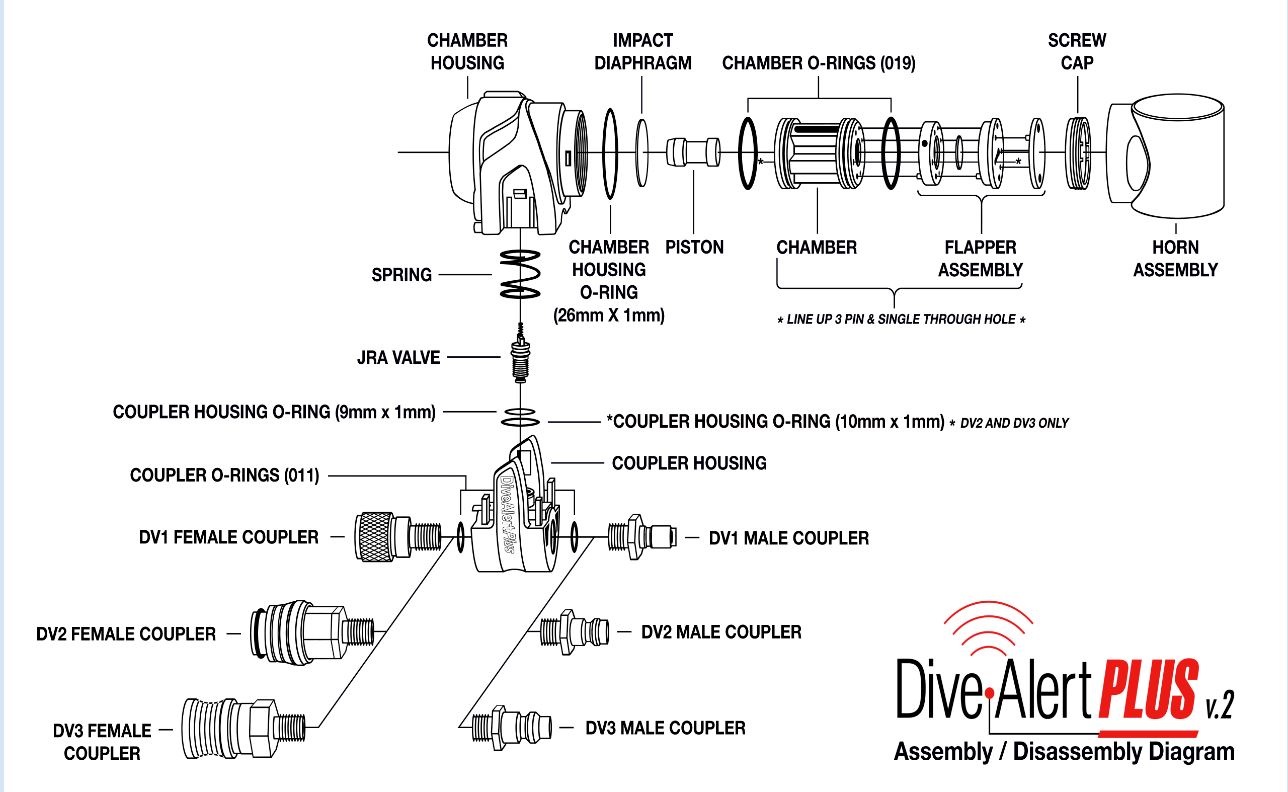

Owners Manual            Exploded Diagram            Schematic

ONE-YEAR LIMITED WARANTY Ideations design, Inc., warrants DiveAlertPLUS to be free from defects in materials and workmanship for one year from the date of purchase from an authorized DiveAlertPLUS dealer. If any functional defects appear in a DiveAlertPLUS unit within the one-year warranty period, the unit will be either repaired or replaced at the option of Ideations Design, Inc.
VIDEOS

DIVEALERT PLUS V.2 FUNCTION VIDEOS:
DiveAlert PLUS V.2 function
DiveAlert PLUS V.2 clearing water out of unit for surface signalling

DIVEALERT PLUS V.2 DISASSEMBLY/ASSEMBLY VIDEOS:
DiveAlert PLUS V.2 teardown (old style piston)
DiveAlert PLUS V.2 teardown (new, and most recent style piston)
DiveAlert PLUS V.2 time lapse assembly

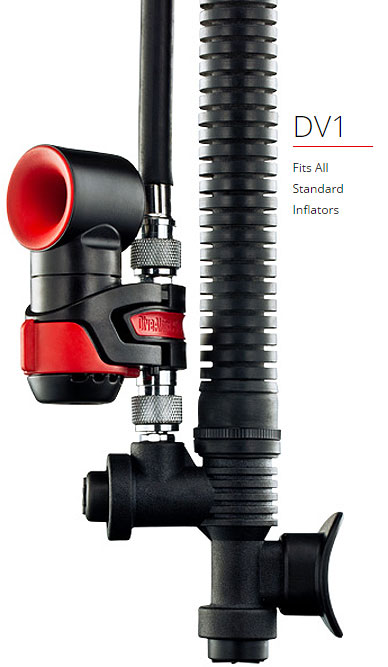

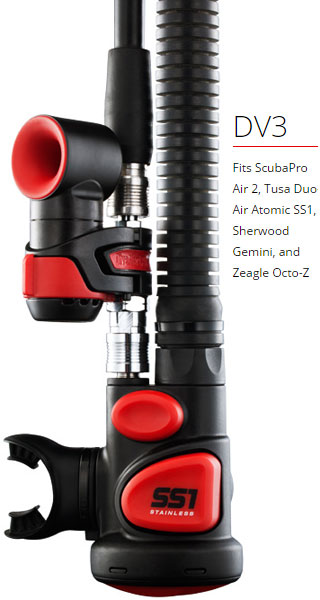

NO MODS REQUIRED DiveAlertPLUS does not require any modification to your equipment, and it does not interfere with the normal operation of your equipment. The DiveAlertPLUS comes in three different models to accommodate different connectors: DV1, DV2, and DV3.
EASY TO USE DESIGN Once the tank is turned on and the DiveAlertPLUS connected, squeeze the DiveAlertPLUS softly underwater for a subsurface signal. Or squeeze it firmly on the surface for a loud surface signal blast. Check that DiveAlertPLUS is installed correctly and functioning properly before every dive. Also be careful not to point DiveAlertPLUS toward yourself or toward anyone who is in close proximity to you when you activate the surface signal (it?s really loud!).
HOW IT WORKS The DiveAlertPLUS uses chrome-plated brass couplings to attach to your power inflator. Squeezing the device engages the actuator valve stem causing a small amount of air to flutter a stainless steel diaphragm, emitting a piercingly loud sound from the injection-moulded thermoplastic body. The subsurface / underwater signal is produced by a percussion "buzzing" noise made by a piston hitting a stainless steel diaphragm much like a drum.
SPECIFICATIONS Body and Internal Elements:
Injection-Moulded Thermoplastic
Diaphragms:
Stainless Steel
Couplings:
Chrome-Plated Brass



DiveAlert is a specially designed, small, light weight air horn that uses quick-connect / disconnect hose couplings to become an integrated part of your power inflator and buoyancy compensator. Installation is easy and only takes a moment.

DiveAlert uses a small amount of air from your SCUBA tank to make a piercingly loud sound. People have been able to hear a DiveAlert one mile away from a diver in need. In conditions where visibility is limited, a DiveAlert can be a life saver.





MAINTENANCE After each use, your DiveAlert should be pressurized and rinsed with fresh water with the rest of your gear. Make sure that before every dive you check that DiveAlert is installed correctly and functioning properly. When testing, be careful not to point DiveAlert toward yourself or toward anyone else or loss of hearing could result.

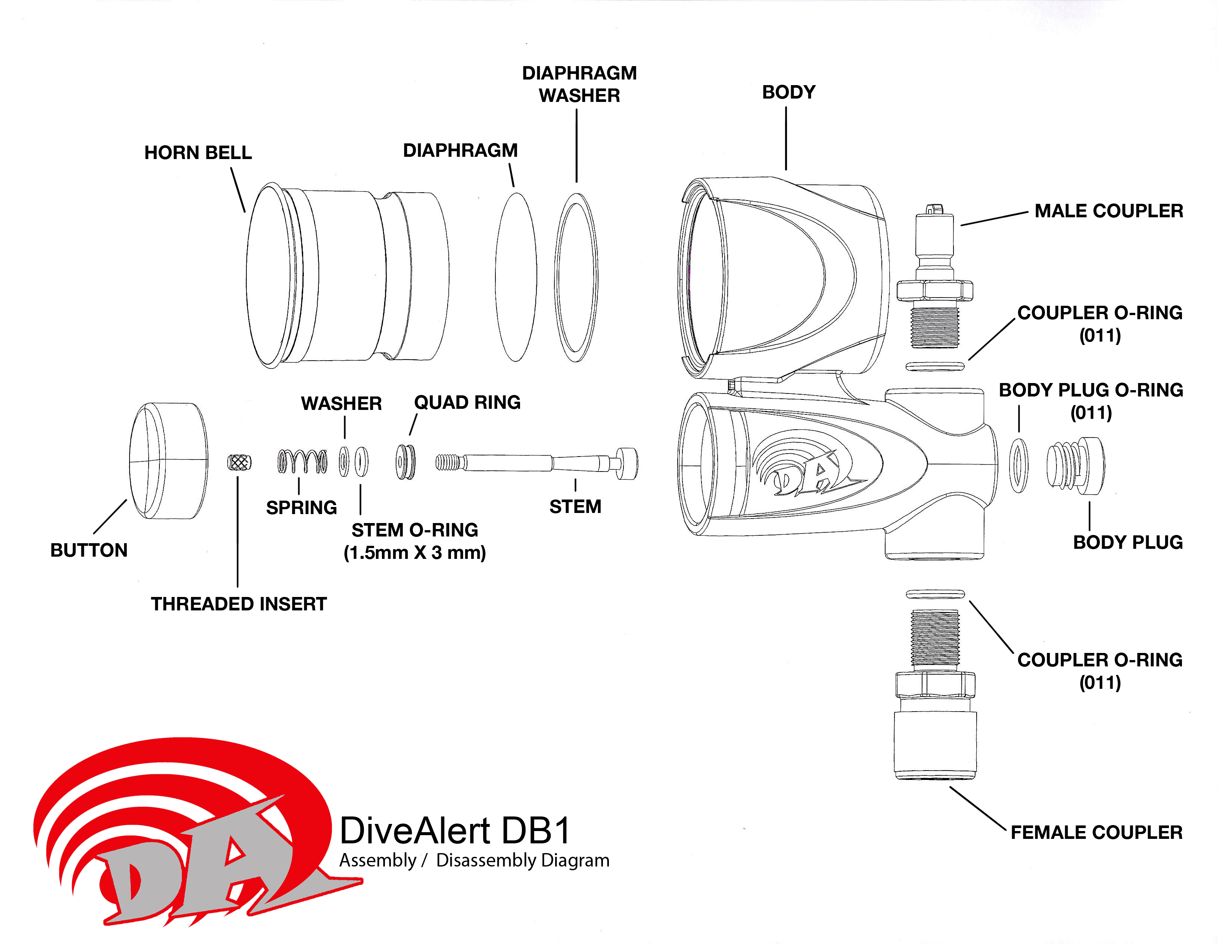

Owners Manual            Exploded Diagram

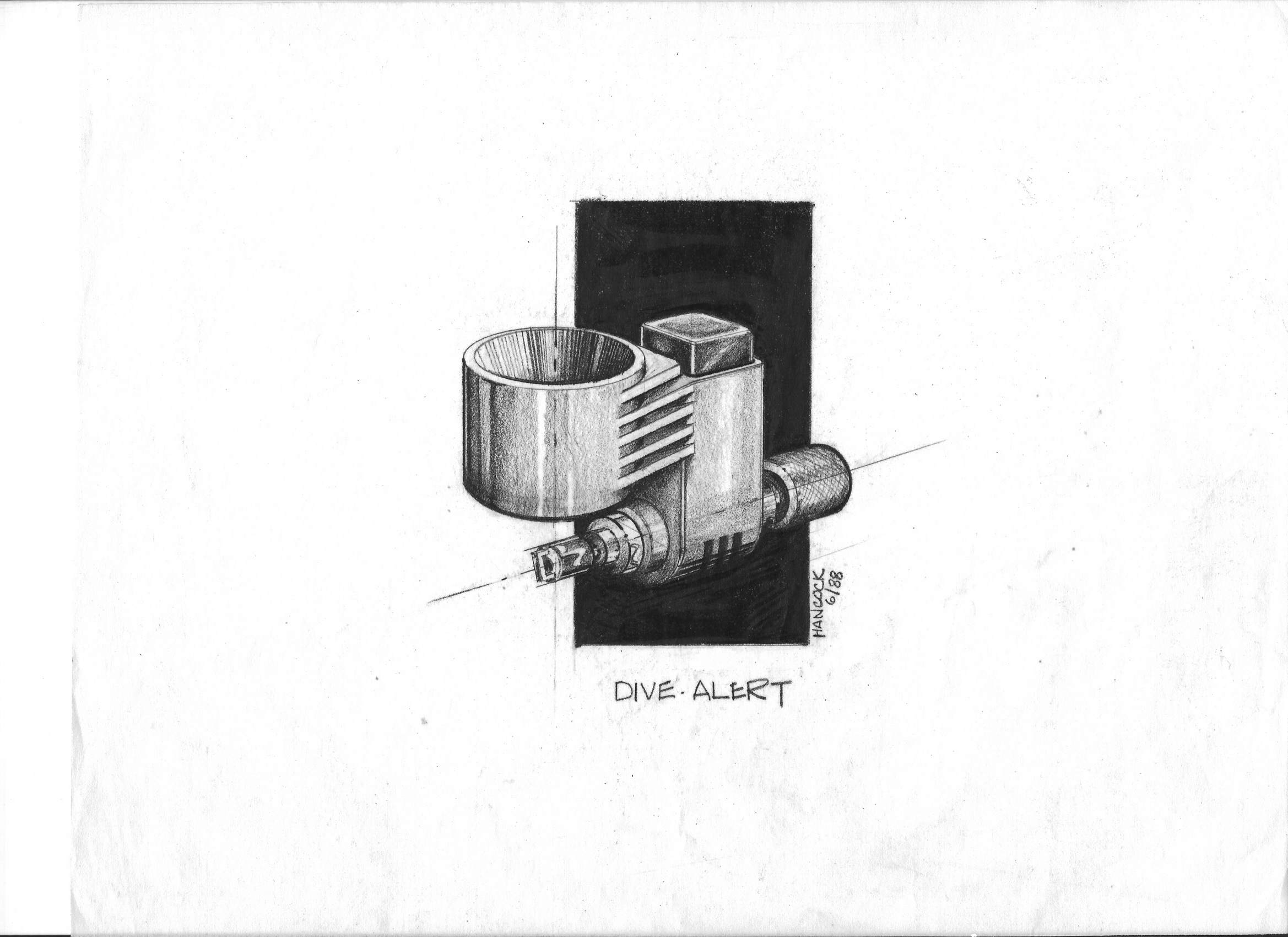

ADDITIONAL INFO Original Drawing

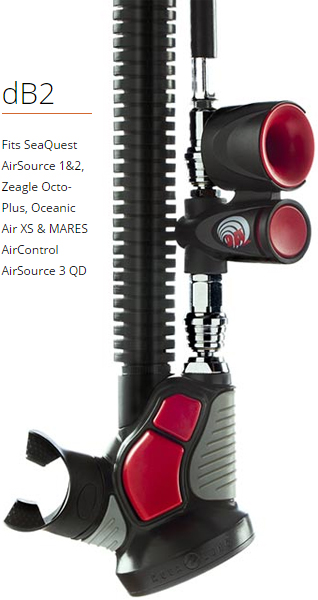

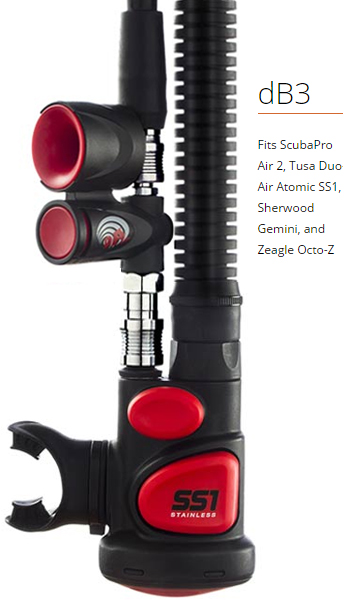

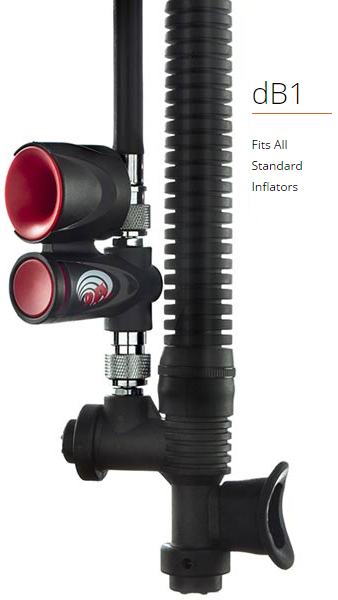

NO MODS REQUIRED DiveAlert does not require any modification to your equipment, and it does not interfere with the normal operation of your equipment. The DiveAlert comes in three different models to accommodate different connectors: dB1, dB2, and dB3.
EASY TO USE DESIGN Simply press the red button to create a piercingly loud sound. Do not point the DiveAlert towards anyone, as it could cause hearing damage. It is that loud.
HOW IT WORKS The DiveAlert uses chrome-plated brass couplings to attach to your power inflator. The activator button engages a chrome-plated brass actuator valve stem causing a small amount of air to rush by a stainless steel diaphragm, emitting a piercingly loud sound from the injection-moulded thermoplastic body.

FIND A DEALER To find your local DiveAlert dealer, please search the map below.



CPS Partnership Ltd are the UK Distributors and do not sell to the public.
Trade sales only. Please find your local retailer to buy products.
